A Crash course in Time Series Forecasting from Naive to Foundational

Pietro Peterlongo, Data Scientist @ AgileLab

Agenda

1. why forecasting (and nixtla)
2. minimal example (and statsforecast)
3. more (M5, ml, hierarchical, neural, foundational)

👋 Hi, I am Pietro 👨‍👩‍👧

• Data Scientist @ agilelab.it ⚪️🔵
  • 📘handbook, 🤙holacracy (self-management)
• (previously) 8+ years at Software Vendor in Supply Chain
• 🐍🇮🇹 Python/PyData Milano milano.python.it
• 🐙 github.com/pietroppeter (👈 more socials 🔗)

🎪 Come to PyCon Italy (Bologna, May 29-31)! 🍝

why forecasting?

domains

• 📈 sales/demand
• 🔋 energy consumption
• 💹 financial assets
• 🌤️ weather
• …

where is the (business) value? 💰

take better decisions! 💡

🏹 taking time seriously

time is the most important dimension

• time frequency (months, weeks, days, hours, …)
• time horizon (how many weeks in the future)?
• lag n forecast: the forecast for the n-th time bucket in the future

other dimensions (e.g. product, market, …) usually lead to forecasting multiple time series (or multivariate ones)

nixtla

methodology

1. think about your why
2. gather data (process, explore)
3. baseline
4. measure
5. improve
6. restart from step 4 or less

AirPassengers - data

import polars as pl

url = "https://datasets-nixtla.s3.amazonaws.com/air-passengers.csv"
air = pl.read_csv(url).with_columns(pl.col("ds").str.to_date())
air.head(3)

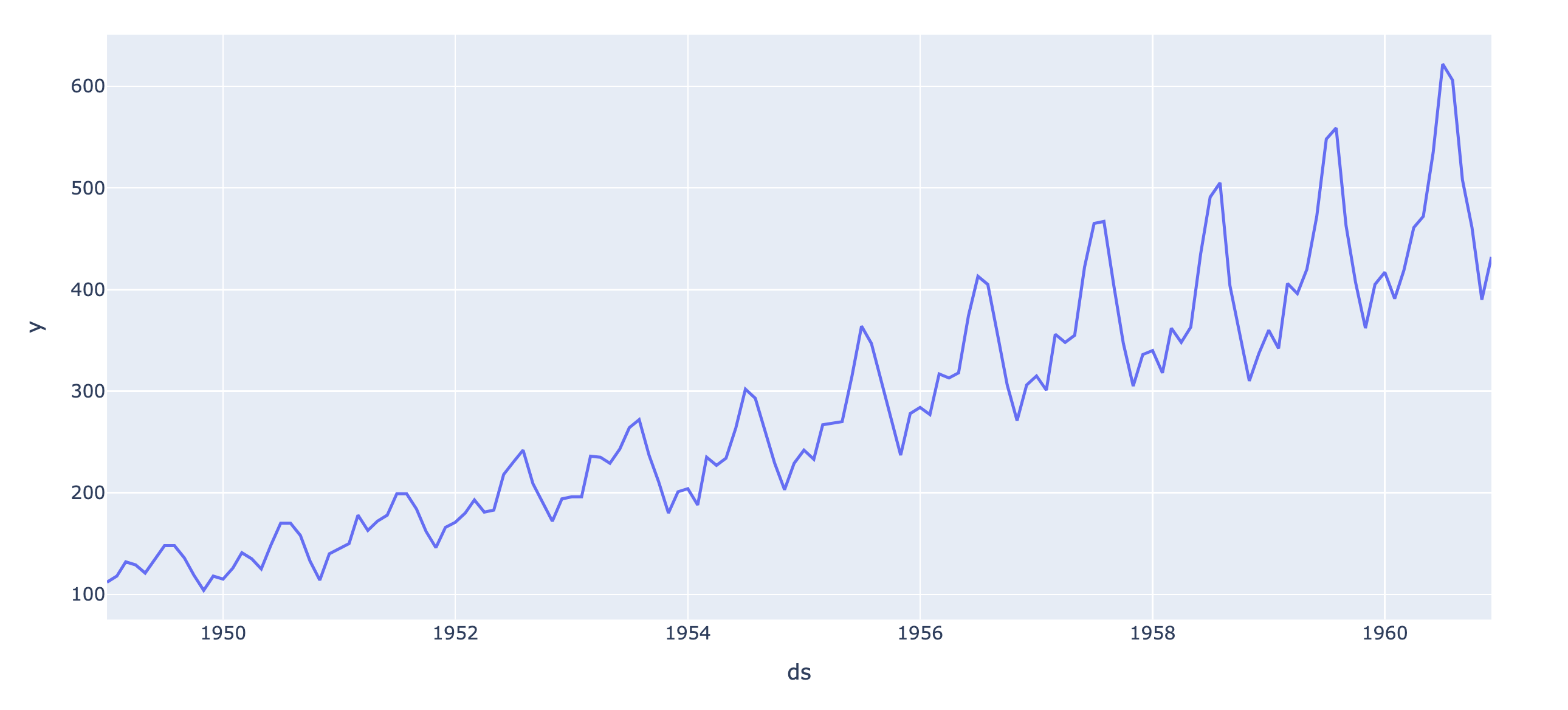

AirPassengers - plot

import plotly.express as px

px.line(air, x="ds", y="y")

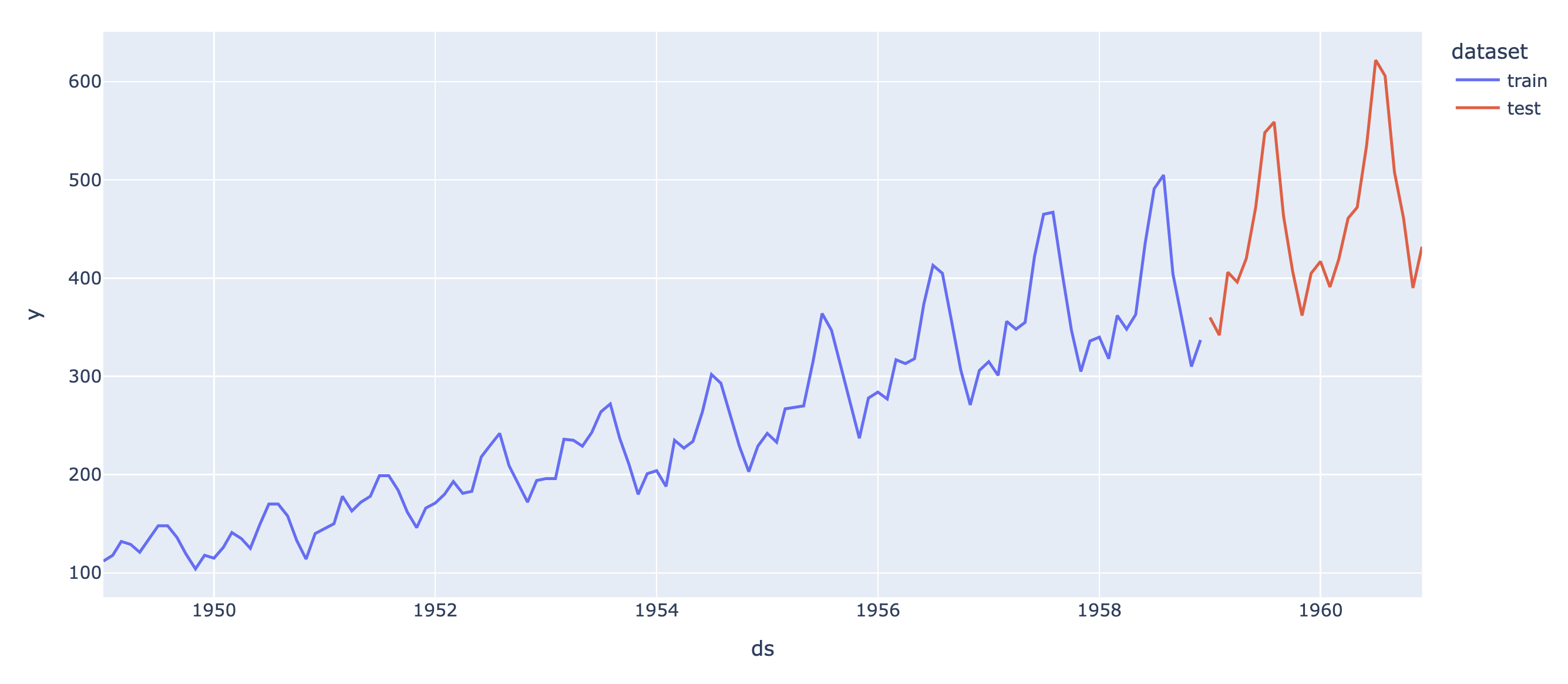

split train/test

from datetime import date

cutoff = date(1959, 1, 1)
df = air.with_columns(pl.when(pl.col("ds") < cutoff).then(pl.lit("train"))
  .otherwise(pl.lit("test")).alias("dataset"))
px.line(df, x="ds", y="y", color="dataset")

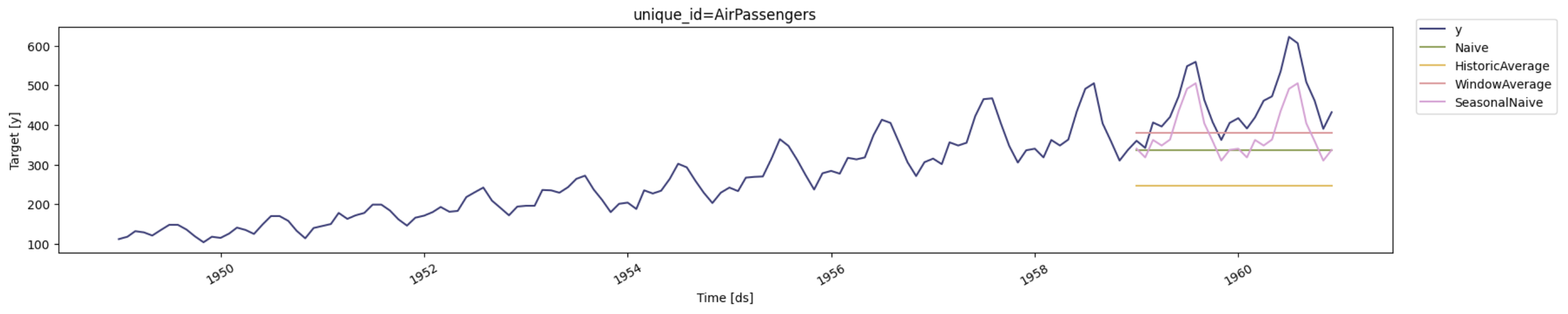

baseline

from statsforecast import StatsForecast
from statsforecast.models import Naive, HistoricAverage, WindowAverage, SeasonalNaive

models=[Naive(),HistoricAverage(), WindowAverage(window_size=12),
        SeasonalNaive(season_length=12)]
sf = StatsForecast(models=models, freq="MS")
sf.fit(train_df)
predict_df = sf.predict(h=24)
sf.plot(df, predict_df)

statsforecast

from statsforecast.models import AutoARIMA, AutoETS

sf = StatsForecast(
    models=[
        AutoARIMA(season_length=12),
        AutoETS(season_length=12),
    ], freq="MS")
sf.fit(train_df)
predict_df = sf.predict(h=24, level=[95])
sf.plot(df, predict_df, level=[95])

probabilistic forecast

Note that Nixtla provides for (almost) all its models a probablistic forecast (using levels keyword argument), either through model specific estimates or with conformal prediction (model agnostic)

predict_df = sf.predict(h=24, level=[95])
sf.plot(df, predict_df, level=[95])

cross validation

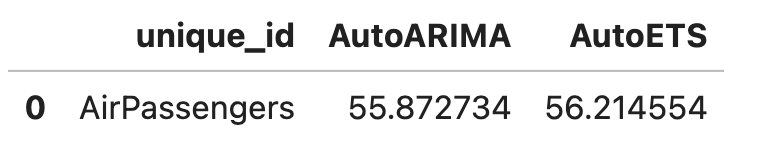

measure

from utilsforecast.losses import rmse

cv_df = sf.cross_validation(df = df, h = 24, step_size = 24, n_windows = 3)
rmse(cv_df, models=["AutoARIMA", "AutoETS"])

M5 Forecasting competition

from datasetsforecast.m5 import M5
Y_df, X_df, S_df = M5.load("data")
sf.plot(Y_df)

mlforecast

import lightgbm as lgbm
from mlforecast import MLForecast
from mlforecast.lag_transforms import ExpandingMean, RollingMean
from mlforecast.target_transforms import Differences

fcst = MLForecast(
    models=[lgbm.LGBMRegressor()],
    freq='D',
    lags=[7, 14],
    lag_transforms={
        1: [ExpandingMean()],
        7: [RollingMean(window_size=28)]
    },
    date_features=['dayofweek'],
    target_transforms=[Differences([1])],
)

hierarchical forecast

from datasetsforecast.hierarchical import HierarchicalData
from hierarchicalforecast.core import HierarchicalReconciliation
from hierarchicalforecast.methods import BottomUp, TopDown, MiddleOut

# Create timeseries for all levels of the hierarchy
Y_df, S, tags = HierarchicalData.load('./data', 'TourismSmall')
# ...
Y_train_df, Y_test_df = ...

# Compute base predictions
fcst = StatsForecast(models=[AutoARIMA(season_length=4), freq='QE')
Y_hat_df = fcst.forecast(df=Y_train_df, h=4)

# Reconcile the base predictions
reconcilers = [
    BottomUp(),
    TopDown(method='forecast_proportions'),
    MiddleOut(middle_level='Country/Purpose/State',
              top_down_method='forecast_proportions')
]
hrec = HierarchicalReconciliation(reconcilers=reconcilers)
Y_rec_df = hrec.reconcile(Y_hat_df=Y_hat_df, Y_df=Y_train_df, S=S, tags=tags)

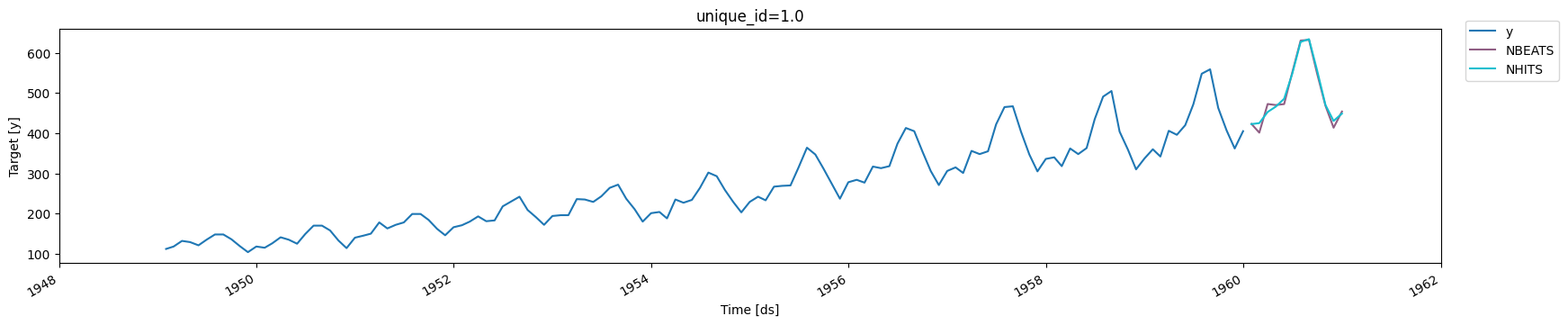

neural forecast

from neuralforecast import NeuralForecast
from neuralforecast.auto import AutoNHITS, AutoLSTM
# ...
horizon = len(Y_test_df)
models = [NBEATS(input_size=2 * horizon, h=horizon, max_steps=100),
          NHITS(input_size=2 * horizon, h=horizon, max_steps=100)]
nf = NeuralForecast(models=models, freq='ME')
nf.fit(df=Y_train_df)
Y_hat_df = nf.predict()

plot_series(Y_df, Y_hat_df)

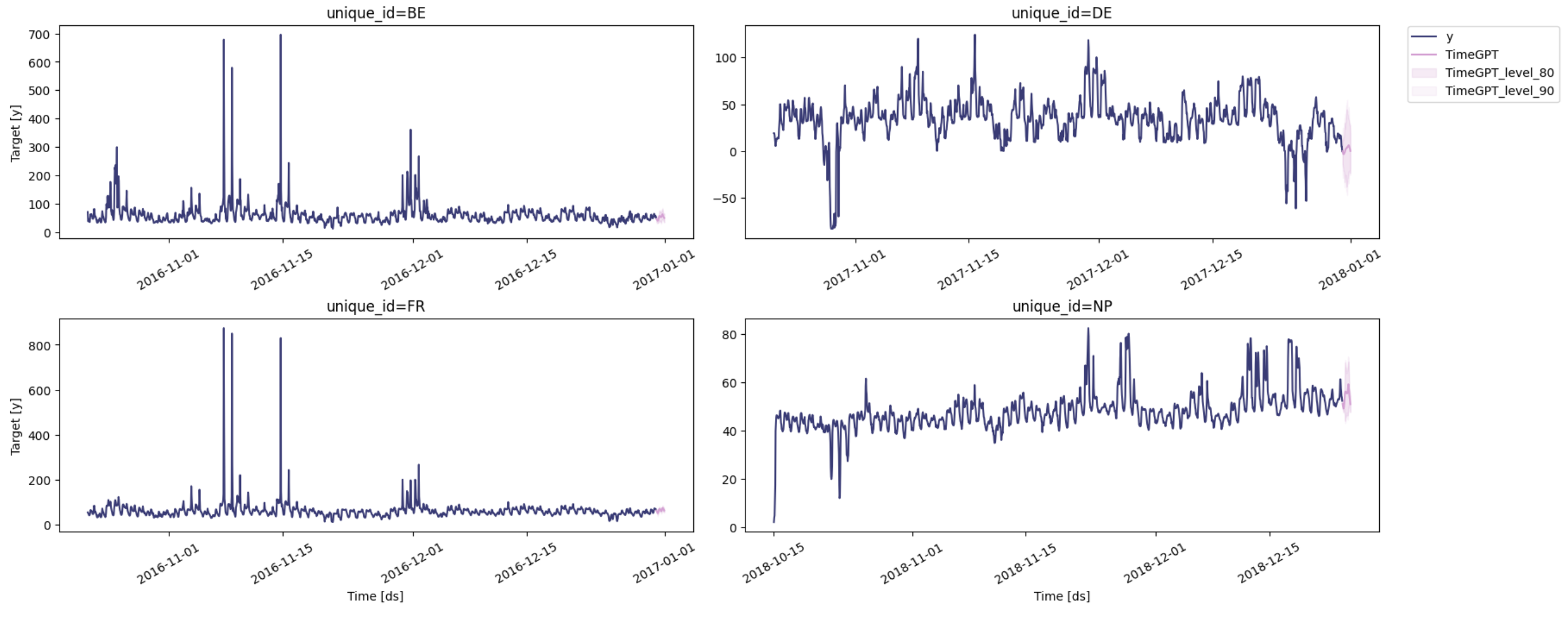

foundational models

from nixtla import NixtlaClient

nixtla_client = NixtlaClient(api_key = nixtla_api_key)
df = pd.read_csv('https://raw.githubusercontent.com/Nixtla/transfer-learning-time-series/main/datasets/electricity-short.csv')
fcst_df = nixtla_client.forecast(df, h=24, level=[80, 90])
nixtla_client.plot(df, fcst_df, level=[80, 90])

🙏 Thank you for listening!
